VANTOT - Liiu

Liiu

Liiu is a modular lighting sculpture that uses balance and weightlessness to construct a composition that is adjustable for any setting. Luminous LEDs are woven into a slender stainless steel structure, creating a pattern that transforms as you move around it. Like a willow tree in the breeze, the light curtain is mesmerizing in its simultaneous presence and ephemerality.

Technical Description

Liiu



DIMENSIONS

Shade diameter: 90 mm
Choose composition

Technical Sheet Catalogue

PHYSICAL
CHARACTERISTICS

Materials/Finish

Mirrored stainless steel

Acrylic thin

Rail & canopy color

Black, white or custom

Weight Element

Net weight 0,25 kg

ELECTRICAL CHARACTERISTICS

LED integrated
100-240 V
0,5 W
2700 K
200 Lm
CRI: 90+

Dimmable Driver – Dimmer not included


CERTIFICATES

IP20

VANTOT - Mono

Mono

Mono is an elegant ceiling lamp composed of an LED orb that illuminates and balances a partly satin-finished glass halo. The on-off function and brightness of the light can be regulated by pinching a wand that extends from the light structure. The light is endowed with a memory for the brightness from the previous session, making it considerate and familiar to its users.

Technical Description

Mono

DIMENSIONS

3 sizes :
Ø 400 mm
Ø 500 mm
Ø 600 mm

Technical Sheet Catalogue

PHYSICAL
CHARACTERISTICS

Materials/Finish

glass
aluminium anodised black

Net weight

1,9 kg- 3,8 kg

ELECTRICAL CHARACTERISTICS

LED integrated
110-240 V
M400: 8,4 W & 840Lm
L500&L600: 13 W & 1300 Lm
2700 K

Integrated driver
500mA/ 24V

CERTIFICATES

VANTOT - Cosmos

Cosmos

Cosmos is a stackable chandelier lighting fixture with a traditionally industrial function and aesthetic. Hand-cut glass bulbs made by Czech glassblowers emit a warm glow that contrasts the steel structure that transmits the electricity for the light.

Technical Description

Cosmos

DIMENSIONS
(l x w x h)

Installation specific



Technical sheet Catalogue

PHYSICAL
CHARACTERISTICS

Materials/Finish

Steel
Handblown glass
Handcutted glass

Weight

Installation specific

Rail & Canopy:

Black/Grey
* Different color on request

ELECTRICAL CHARACTERISTICS

Voltage 100-240V
Dim to warm
Driver 24 V
CRI 85

CERTIFICATES

IP20

VANTOT - O-O-O

O-O-O

Continuous Current uses the same grid as the V-V-V, it also proposes a low voltage source of light that provides subtle illumination in space. It is a lightweight system which easily gets integrated into a space matching the environment and situations by regulating the light intensity.

Technical Description

O-O-O

DIMENSIONS

Disc + LED Element: 175 x 200 x 120 mm

Choose composition.

Technical Sheet Catalogue

PHYSICAL
CHARACTERISTICS

Materials/finish
– Stainless steel finish: Stainless steel & Acrylic
– Copper finish: Copper & Acrylic
– Rail & Canopy: black or white
with stainless suspension cables and stainless assembly

Rail & Canopy

Black, white or custom

Net weight

0,25 kg

TECHNICAL CHARACTERISTICS

LED integrated
100-240 V
0,5 W
2700 K
200 Lm
CRI: 90+

Dimmable driver – Dimmer not included
24V 0,5W/light

CERTIFICATES

VANTOT - V-V-V

V-V-V

VANTOT takes a different approach by designing innovative, low voltage lighting objects that step away from the traditional concept of a lamp and a power cord. Instead, Current Curtain shows LED modules that are fully conductive while safe to touch. Current Curtain is a modular system and gives you endless possibilities in quantity of light and composition. Due to the use of the modular rail system, it is also possible to add modules and wires to your collection in a later stage.

Technical Description

V-V-V

DIMENSIONS
(l x w x h)

570 x 355 x 20 mm





Technical sheet Catalogue

PHYSICAL
CHARACTERISTICS

Materials
Anodized aluminium & sandblasted glass
with stainless suspension cables and stainless assembly

Finish
Silver | Gold | Copper (custom)

Rail & Canopy
White
* Different color on request

Net weight
0,4kg

ELECTRICAL CHARACTERISTICS


LED integrated
Voltage: 230V
Watt: 2W (8 * 0,25W)

2700 K
200 lm
CRI: 85

Dimmable Driver – TRIAC dimmable
12V 60W



CERTIFICATES

VANTOT - Limpid Lights

Limpid Lights

In addition to VANTOT's collection Exploded View, Limpid Lights continues on the idea of manipulating the light with movement. By moving the light source closer to, or further away from the lighting object, the intensity of the light can be adapted. While the initial LED-light is fresh and bright, the handblown glass shades can be used to soften the light and create a more intimate ambience. By moving the light source, the light can be playfully adapted from bright to a more diffuse, soft and/or coloured light.

Technical Description

Limpid Lights

DIMENSIONS (l x w x h)

S – 166 x 166 x 385 mm
M – 340 x 340 x 360 mm
L – 200 x 200 x 600 mm



Technical sheet - S Technical sheet - M Technical sheet - L Catalogue

PHYSICAL
CHARACTERISTICS

Materials

Shade in glass (The glass is mouth-blown and therefore can contain air bubbles).

Adjustable suspension in steel and brass. Non-adjustable suspension in steel.

Finish

Sandblasted
Choose between clear, smoked or coloured

* with fingerprint protective finish

Net weight

S
Full swing: 2.9kg
Standard: 2.0 kg

M
Full Swing: 4.6 kg
Standard: 3.7 kg

L
Full Swing: 5.5 kg
Standard: 4.6 kg

ELECTRICAL CHARACTERISTICS

LED integrated
12 W
2700 K
1200 lm
CRI: 80

Dimmable Driver – Tronic dimmable
Max. 40 W
* Casambi dimmer suggested.

CERTIFICATES

VANTOT - Exploded View Lunar PENDANT

Exploded View Lunar PENDANT

Do we understand what happens when we dim our lights? How can we include dimming as a part of the design? By means of a reflecting lampshade, the light is reflected. Depending on the position of the light bulb to the cover, the light is reflected at the top or bottom.

Technical Description

EXPLODED VIEW

DIMENSIONS
(l x w x h)

Shade: 150 x 650 x 630 mm
Canopy: 120x 120  x 85 mm

Technical Sheet Catalogue

PHYSICAL
CHARACTERISTICS

Materials/Finish

Cutted and coated steel with an acrylic reflector.

ELECTRICAL CHARACTERISTICS

LED Integrated
12 W

2700 K
1200 lm
CRI: 80

Dimmable Driver – Tronic dimmable
Max. 40 W
* Dimmer not included
* Casambi dimmer suggested.

CERTIFICATES

VANTOT - Exploded View Lunar WALL

Exploded View Lunar WALL

Do we understand what happens when we dim our lights? How can we include dimming as a part of the design? By means of a reflecting lampshade, the light is reflected. Depending on the position of the light bulb to the cover, the light is reflected.

Technical Description

EXPLODED VIEW



Dimensions (l x w x h)

Shade: 150 x 650 x 630 mm
Canopy: 120x 120  x 85 mm

Package

1 BOX 500 x 700 x 50 mm



Technical sheet Catalogue

PHYSICAL
CHARACTERISTICS

Materials/Finish

Cutted and coated steel with an acrylic reflector.

ELECTRICAL CHARACTERISTICS

Led 12 W
2700 K
1200 lm
CRI 80

LED Driver
Meanwell PCD-16-350B
200-240 VAC    0.20 A   50/60 Hz
277 VAC            0.15 A   50/60 Hz
Max. 40 W
Tronic dimmable,
casambi dimmer suggested.

Certificates

VANTOT - Exploded View ECLIPSE

Exploded View ECLIPSE

Do we understand what happens when we dim our lights? How can we include dimming as a part of the design? By means of a reflecting lampshade, the light is reflected. Depending on the position of the light bulb to the cover, the light is reflected at the top or bottom.

Technical Description

EXPLODED VIEW

DIMENSIONS
(l x w x h)

Shade: 150 x 650 x 630 mm
Canopy: 120x 120  x 85 mm

Technical Sheet Catalogue

PHYSICAL
CHARACTERISTICS

Materials/Finish

Cutted and coated steel with an acrylic reflector.

ELECTRICAL CHARACTERISTICS

LED Integrated
12 W

2700 K
1200 lm
CRI: 80

Dimmable Driver – Tronic dimmable
Max. 40 W
* Dimmer not included
* Casambi dimmer suggested.

CERTIFICATES

VANTOT - Feather Floor Light

Feather Floor Light

Current Currents challenges the idea of traditional lighting and rediscovers the role of light in our interior. Feather translates this principle by adding LED’s to an electrically loaded base which gives you freedom in the amount of light and composition of LED’s.

Technical Description

FEATHER
.

DIMENSIONS
(l x w x h)

Floor Light

200 x 400 x 1750 mm

Technical Sheet Catalogue

PHYSICAL
CHARACTERISTICS

Materials/Finish

Special | Material : Copper
Copper plated metal  & sandblasted handblown glass.
* Please note this item may naturally corrode in time.

Material : Varnished metal
Varnished metal (dark grey) & sandblasted handblown glass.

Canopy: Dark grey
* Different color on request

ELECTRICAL CHARACTERISTICS

Led integrated
12 W
2700 K
1200 lm
CRI: 80

Dimmable Driver- Tronic dimmable
Max. 40 W
* Dimmer not included
* Casambi dimmer suggested

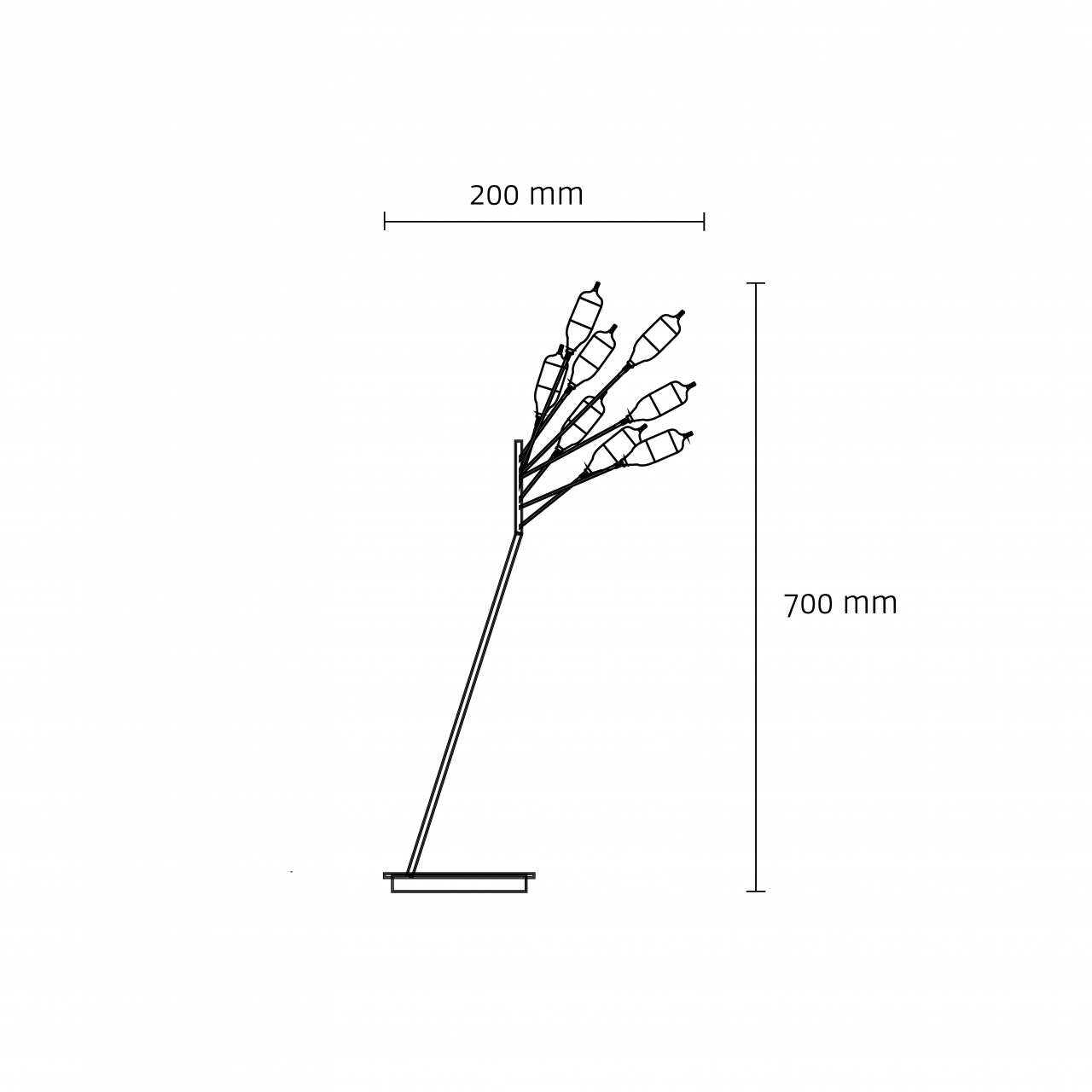

VANTOT - Feather Table Light

Feather Table Light

Current Currents challenges the idea of traditional lighting and rediscovers the role of light in our interior. Feather translates this principle by adding LED’s to a electrically loaded base which gives you freedom in the amount of light and composition of LED’s

Technical Description

FEATHER



Dimensions (l x w x h)

Element: 300 x 350 x 530 mm

Package

Per Module
1 BOX 400 x 450 x 600 mm



Technical sheet Catalogue

PHYSICAL
CHARACTERISTICS

Materials/Finish

Special | Material : Copper
Copper plated metal  & sandblasted handblown glass.
* Please note this item may naturally corrode in time.

Material : Varnished metal
Varnished metal (dark grey) & sandblasted handblown glass.

Foot: Dark grey
* Different color on request

ELECTRICAL CHARACTERISTICS

Led 12 W
2700 K
1200 lm
CRI 80

LED Driver
Meanwell PCD-16-350B
200-240 VAC    0.20 A   50/60 Hz
277 VAC            0.15 A   50/60 Hz
Max. 40 W
Tronic dimmable,
casambi dimmer suggested.

Certificates

VANTOT - Feather Chandelier

Feather Chandelier

LED requires a different approach than conventional lighting. Compared to traditional fixtures, the focused and dense light of LED calls for multiple light sources instead of one. The feather family consists of free-formed structures with various interchangeable handblown “LED bulbs”. The Chandelier consists of 28 light sources.

Technical Description

FEATHER



Dimensions (l x w x h)

Element: 450 x 450 x 600 mm

Package

1 BOX 500 x 500 x 700 mm



Technical sheet Catalogue

PHYSICAL
CHARACTERISTICS

Materials/Finish

Special | Material : Copper
Copper plated metal  & sandblasted handblown glass.
* Please note this item may naturally corrode in time.

Material : Varnished metal
Varnished metal (dark grey) & sandblasted handblown glass.

Canopy: Dark grey
* Different color on request

ELECTRICAL CHARACTERISTICS

Led 12 W
2700 K
1200 lm
CRI 80

LED Driver
Meanwell PCD-16-350B
200-240 VAC    0.20 A   50/60 Hz
277 VAC            0.15 A   50/60 Hz
Max. 40 W
Tronic dimmable,
casambi dimmer suggested.

Certificates

VANTOT - Polar Play Chandelier

Polar Play Chandelier

LED requires a different approach than conventional lighting. Compared to traditional fixtures, the focused and dense light of LED calls for multiple light sources instead of one. Polar Play plays with light sources and transports the electricity through the fixture.

Technical Description

Dimensions
(l x w x h)

800 x 800 x 200 mm



Technical Sheet Catalogue

PHYSICAL
CHARACTERISTICS

Materials/Finish

Cutted and coated brass with an acrylic reflector.

Weight
Chandelier: 2kg
Pendant: 2.3kg

ELECTRICAL CHARACTERISTICS

LED Integrated
12 W
2700 K
1200 lm
CRI: 80

Dimmable Driver – Tronic dimmable
Max. 40 W
* Dimmer not included
* Casambi dimmer suggested

CERTIFICATES

VANTOT - Polar Play Pendant

Polar Play Pendant

LED requires a different approach than conventional lighting. Compared to traditional fixtures, the focused and dense light of LED calls for multiple light sources instead of one. Polar Play plays with light sources and transports the electricity through the fixture.

Technical Description

POLAR PLAY



Dimensions (l x w x h)

Element: 360 x 150 x 660 mm

Package

Per Module
1 BOX 500 x 700 x 50 mm



Technical Sheet Catalogue

PHYSICAL
CHARACTERISTICS

Materials/Finish

Cutted and coated copper.

ELECTRICAL CHARACTERISTICS

Led 12 W
2700 K
1200 lm
CRI 80

LED Driver
Meanwell PCD-16-350B
200-240 VAC    0.20 A   50/60 Hz
277 VAC            0.15 A   50/60 Hz
Max. 40 W
Tronic dimmable,
casambi dimmer suggested.

Certificates
