VANTOT - O-O-O

O-O-O

Continuous Current uses the same grid as the V-V-V, it also proposes a low voltage source of light that provides subtle illumination in space. It is a lightweight system which easily gets integrated into a space matching the environment and situations by regulating the light intensity.

Technical Description

O-O-O

DIMENSIONS

Disc + LED Element: 175 x 200 x 120 mm

Choose composition.

Technical Sheet Catalogue

PHYSICAL
CHARACTERISTICS

Materials/finish
– Stainless steel finish: Stainless steel & Acrylic
– Copper finish: Copper & Acrylic
– Rail & Canopy: black or white
with stainless suspension cables and stainless assembly

Rail & Canopy

Black, white or custom

Net weight

0,25 kg

TECHNICAL CHARACTERISTICS

LED integrated
100-240 V
0,5 W
2700 K
200 Lm
CRI: 90+

Dimmable driver – Dimmer not included
24V 0,5W/light

CERTIFICATES

VANTOT - Exploded View Lunar PENDANT

Exploded View Lunar PENDANT

Do we understand what happens when we dim our lights? How can we include dimming as a part of the design? By means of a reflecting lampshade, the light is reflected. Depending on the position of the light bulb to the cover, the light is reflected at the top or bottom.

Technical Description

EXPLODED VIEW

DIMENSIONS
(l x w x h)

Shade: 150 x 650 x 630 mm
Canopy: 120x 120  x 85 mm

Technical Sheet Catalogue

PHYSICAL
CHARACTERISTICS

Materials/Finish

Cutted and coated steel with an acrylic reflector.

ELECTRICAL CHARACTERISTICS

LED Integrated
12 W

2700 K
1200 lm
CRI: 80

Dimmable Driver – Tronic dimmable
Max. 40 W
* Dimmer not included
* Casambi dimmer suggested.

CERTIFICATES

VANTOT - Exploded View Lunar WALL

Exploded View Lunar WALL

Do we understand what happens when we dim our lights? How can we include dimming as a part of the design? By means of a reflecting lampshade, the light is reflected. Depending on the position of the light bulb to the cover, the light is reflected.

Technical Description

EXPLODED VIEW



Dimensions (l x w x h)

Shade: 150 x 650 x 630 mm
Canopy: 120x 120  x 85 mm

Package

1 BOX 500 x 700 x 50 mm



Technical sheet Catalogue

PHYSICAL
CHARACTERISTICS

Materials/Finish

Cutted and coated steel with an acrylic reflector.

ELECTRICAL CHARACTERISTICS

Led 12 W
2700 K
1200 lm
CRI 80

LED Driver
Meanwell PCD-16-350B
200-240 VAC    0.20 A   50/60 Hz
277 VAC            0.15 A   50/60 Hz
Max. 40 W
Tronic dimmable,
casambi dimmer suggested.

Certificates

VANTOT - Exploded View ECLIPSE

Exploded View ECLIPSE

Do we understand what happens when we dim our lights? How can we include dimming as a part of the design? By means of a reflecting lampshade, the light is reflected. Depending on the position of the light bulb to the cover, the light is reflected at the top or bottom.

Technical Description

EXPLODED VIEW

DIMENSIONS
(l x w x h)

Shade: 150 x 650 x 630 mm
Canopy: 120x 120  x 85 mm

Technical Sheet Catalogue

PHYSICAL
CHARACTERISTICS

Materials/Finish

Cutted and coated steel with an acrylic reflector.

ELECTRICAL CHARACTERISTICS

LED Integrated
12 W

2700 K
1200 lm
CRI: 80

Dimmable Driver – Tronic dimmable
Max. 40 W
* Dimmer not included
* Casambi dimmer suggested.

CERTIFICATES

VANTOT - Feather Floor Light

Feather Floor Light

Current Currents challenges the idea of traditional lighting and rediscovers the role of light in our interior. Feather translates this principle by adding LED’s to an electrically loaded base which gives you freedom in the amount of light and composition of LED’s.

Technical Description

FEATHER
.

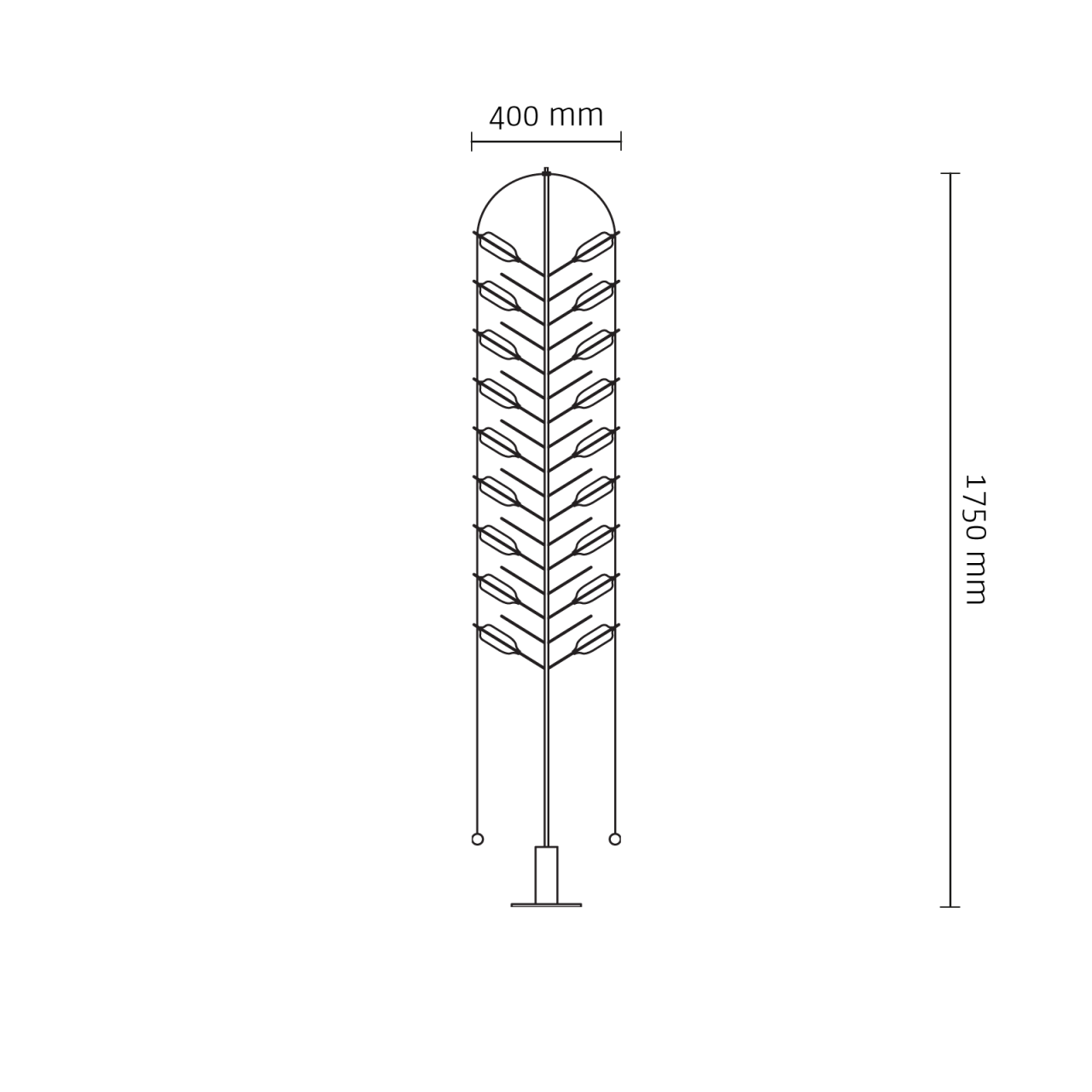

DIMENSIONS
(l x w x h)

Floor Light

200 x 400 x 1750 mm

Technical Sheet Catalogue

PHYSICAL
CHARACTERISTICS

Materials/Finish

Special | Material : Copper
Copper plated metal  & sandblasted handblown glass.
* Please note this item may naturally corrode in time.

Material : Varnished metal
Varnished metal (dark grey) & sandblasted handblown glass.

Canopy: Dark grey
* Different color on request

ELECTRICAL CHARACTERISTICS

Led integrated
12 W
2700 K
1200 lm
CRI: 80

Dimmable Driver- Tronic dimmable
Max. 40 W
* Dimmer not included
* Casambi dimmer suggested

VANTOT - Feather Table Light

Feather Table Light

Current Currents challenges the idea of traditional lighting and rediscovers the role of light in our interior. Feather translates this principle by adding LED’s to a electrically loaded base which gives you freedom in the amount of light and composition of LED’s

Technical Description

FEATHER



Dimensions (l x w x h)

Element: 300 x 350 x 530 mm

Package

Per Module
1 BOX 400 x 450 x 600 mm



Technical sheet Catalogue

PHYSICAL
CHARACTERISTICS

Materials/Finish

Special | Material : Copper
Copper plated metal  & sandblasted handblown glass.
* Please note this item may naturally corrode in time.

Material : Varnished metal
Varnished metal (dark grey) & sandblasted handblown glass.

Foot: Dark grey
* Different color on request

ELECTRICAL CHARACTERISTICS

Led 12 W
2700 K
1200 lm
CRI 80

LED Driver
Meanwell PCD-16-350B
200-240 VAC    0.20 A   50/60 Hz
277 VAC            0.15 A   50/60 Hz
Max. 40 W
Tronic dimmable,
casambi dimmer suggested.

Certificates

VANTOT - Feather Chandelier

Feather Chandelier

LED requires a different approach than conventional lighting. Compared to traditional fixtures, the focused and dense light of LED calls for multiple light sources instead of one. The feather family consists of free-formed structures with various interchangeable handblown “LED bulbs”. The Chandelier consists of 28 light sources.

Technical Description

FEATHER



Dimensions (l x w x h)

Element: 450 x 450 x 600 mm

Package

1 BOX 500 x 500 x 700 mm



Technical sheet Catalogue

PHYSICAL
CHARACTERISTICS

Materials/Finish

Special | Material : Copper
Copper plated metal  & sandblasted handblown glass.
* Please note this item may naturally corrode in time.

Material : Varnished metal
Varnished metal (dark grey) & sandblasted handblown glass.

Canopy: Dark grey
* Different color on request

ELECTRICAL CHARACTERISTICS

Led 12 W
2700 K
1200 lm
CRI 80

LED Driver
Meanwell PCD-16-350B
200-240 VAC    0.20 A   50/60 Hz
277 VAC            0.15 A   50/60 Hz
Max. 40 W
Tronic dimmable,
casambi dimmer suggested.

Certificates

VANTOT - Polar Play Chandelier

Polar Play Chandelier

LED requires a different approach than conventional lighting. Compared to traditional fixtures, the focused and dense light of LED calls for multiple light sources instead of one. Polar Play plays with light sources and transports the electricity through the fixture.

Technical Description

Dimensions
(l x w x h)

800 x 800 x 200 mm



Technical Sheet Catalogue

PHYSICAL
CHARACTERISTICS

Materials/Finish

Cutted and coated brass with an acrylic reflector.

Weight
Chandelier: 2kg
Pendant: 2.3kg

ELECTRICAL CHARACTERISTICS

LED Integrated
12 W
2700 K
1200 lm
CRI: 80

Dimmable Driver – Tronic dimmable
Max. 40 W
* Dimmer not included
* Casambi dimmer suggested

CERTIFICATES

VANTOT - Polar Play Pendant

Polar Play Pendant

LED requires a different approach than conventional lighting. Compared to traditional fixtures, the focused and dense light of LED calls for multiple light sources instead of one. Polar Play plays with light sources and transports the electricity through the fixture.

Technical Description

POLAR PLAY



Dimensions (l x w x h)

Element: 360 x 150 x 660 mm

Package

Per Module
1 BOX 500 x 700 x 50 mm



Technical Sheet Catalogue

PHYSICAL
CHARACTERISTICS

Materials/Finish

Cutted and coated copper.

ELECTRICAL CHARACTERISTICS

Led 12 W
2700 K
1200 lm
CRI 80

LED Driver
Meanwell PCD-16-350B
200-240 VAC    0.20 A   50/60 Hz
277 VAC            0.15 A   50/60 Hz
Max. 40 W
Tronic dimmable,
casambi dimmer suggested.

Certificates
